BESPOKE SUPPORT
HERE WHEN YOU NEED ASSISTANCE
Whether you’re a customer or one of our partners, there may be times when you need support with your stairlift. Our after-sales care team is always on hand to help.
Our stairlifts come with up to 2-years warranty that includes cover for parts and labour, Terms and conditions apply.
We also offer service contracts to extend your warranty for extra peace of mind.
We aim to resolve any issues quickly and efficiently; our network of trade partners ensure a fast response to any issues you may have in a timely, professional manner.

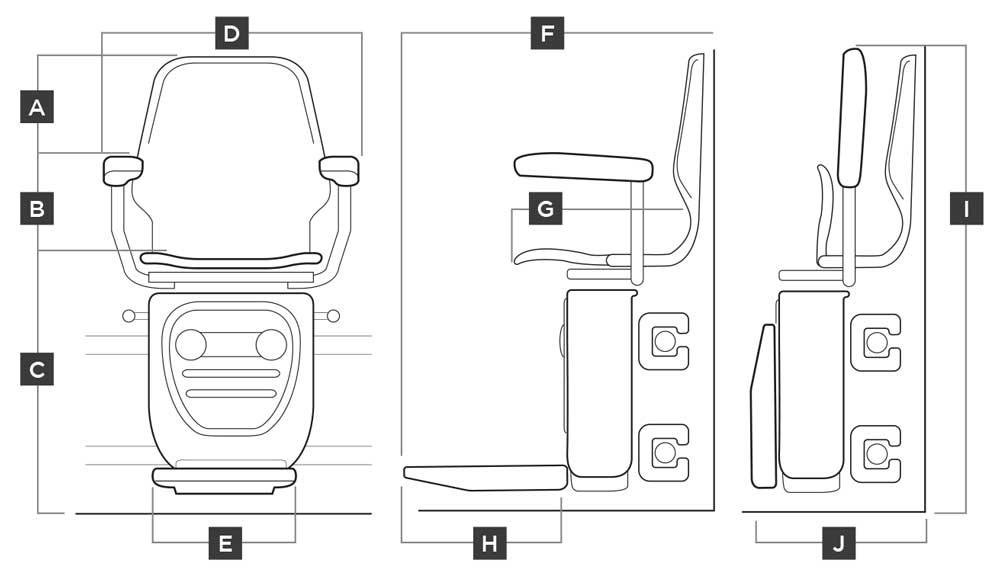

SPECIFICATIONS
A
B
C
D
E
F
G
H
I
J
Overall Height (from floor)
Height of arms (from floor)
Height of seat (from floor)
Overall width
Width of footrest
Overall depth (from wall)
Depth of seat (to backrest)
Depth of footrest
Overall Height (when folded)
Overall depth (when folded)
970mm (38inch)
750mm (30inch)
530mm (21inch)
575mm (23inch)
252mm (10inch)
565mm (22inch)
380mm (15inch)
315mm (12inch)
980mm (39inch)
295mm (12inch)
Power supply: Input 120v - 240v /Output 1.2Ah
Battery: 2x 12v
Rail drive: Rack and Pinion
Maximum seat rotation: 80˚
Maximum user weight: 125kg (19.5st)

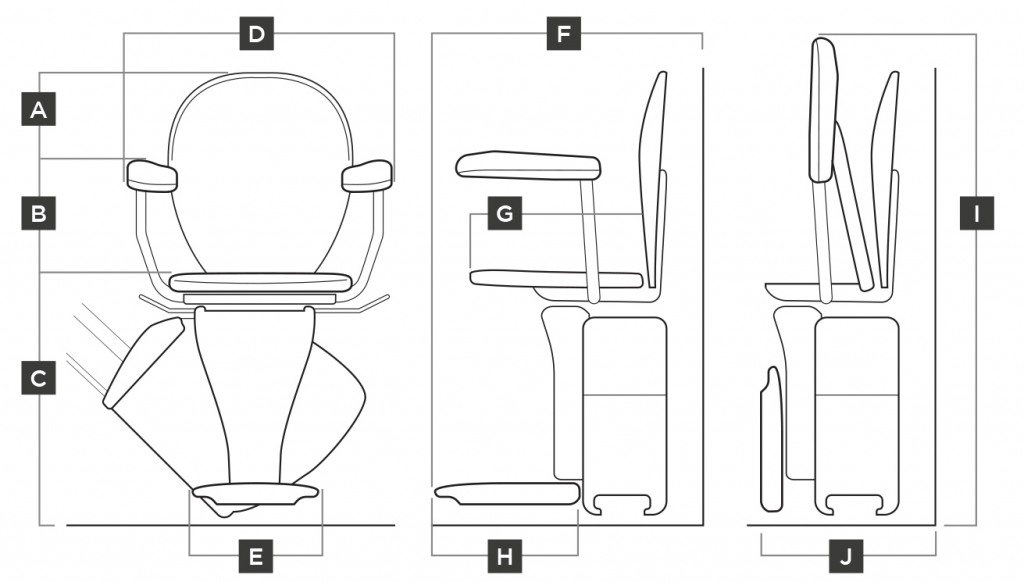

A
B
C
D
E
F
G
H
I
J
Overall Height (from floor)
Height of arms (from floor)
Height of seat (from floor)
Overall width
Width of footrest
Overall depth (from wall)
Depth of seat (to backrest)
Depth of footrest
Overall Height (when folded)
Overall depth (when folded)
1058mm (42inch)
837mm (33inch)
594mm (23inch)
607mm (24inch)
320mm (12inch)
635mm (25inch)
380mm (15inch)
380mm (15inch)
1078mm (43inch)
407mm (16inch)
Power supply: Input 120v - 240v /Output 1.2Ah
Battery: 2x 12v
Rail drive: Rack and Pinion
Maximum seat rotation: 80˚
Maximum user weight: 125kg (19.5st)
Request Support
If you require any technical assistance or documents, please call Bespoke or complete the form below.
ONLINE VIDEO ASSISTANCE
We have a dedicated YouTube channel with informative installation videos, company and product showreels to show your customers.
Visit and subscribe today.
ONLINE TRAINING
& DEMONSTRATIONS
We offer online training and product demonstrations through one-to-one video, without travel and at a time to suit you.
Contact us to find out more.
